Home Bearing MYT LME20UUGA Steel Cage Bearing
MYT LME20UUGA Bearing

For reference only. Please contact us for actual product photos and detailed specifications.

MYT Genuine Original

MYT LME20UUGA Steel Cage Bearing
Model / Part No: LME20UUGA Catalog ID: MB-413BD443

Brand

MYT

Model / Part No.

LME20UUGA

Category

Bearing

Origin

Global

Availability

7700 pcs Ready to Ship
US$ 2.30 / unit (Wholesale)
Secure Payments
PayPal
Bank T/T

Official proforma invoice provided for all settlements.

Technical Drawings (For reference only)

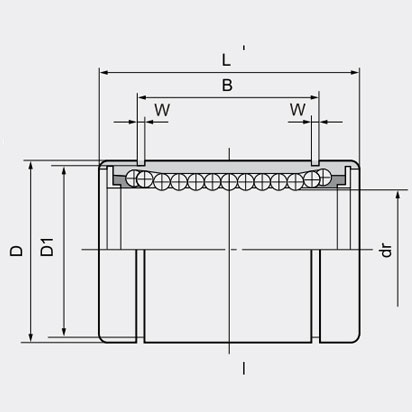

Technical Drawing 1

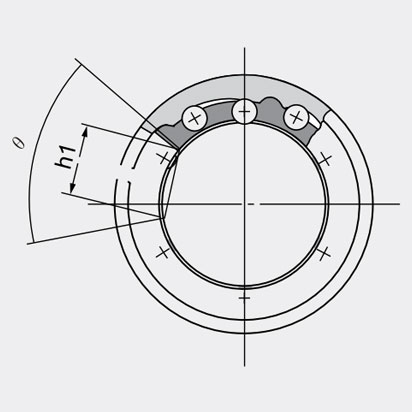

Technical Drawing 2

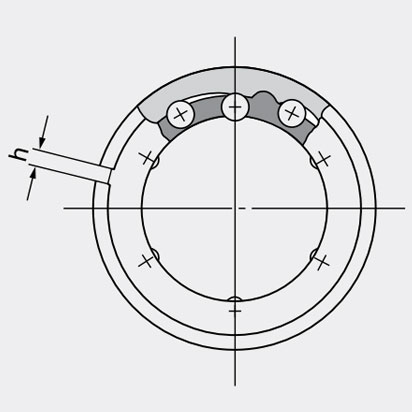

Technical Drawing 3

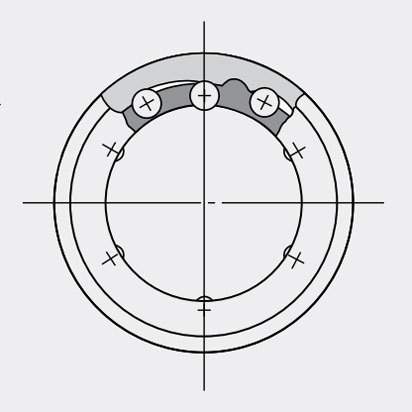

Technical Drawing 4

Technical Specifications (For reference only)

Weight (g)
75
h
2
d mm
32
Standard type
LME20UU
Number of ball rows
4
B(mm)
31.5
L mm
45
D1 mm
30.3
Clearance adjustable type
LME20UU-AJ
Open type
LME20UU-OP
θ
60°
Nominal Shaft Diameter (mm)
20
dr mm
20
Tolerance μm Standard
9/-1
Outside Diameter (D) Tolerance μm
0/-11
Length (L) Tolerance μm
0/-200
Width (B) Tolerance μm
0/-200
w mm
1.6
h1 mm
10
Eccentricity μm
15
Max radial clearance (μm)
-6
Dynamic Load C (N)
862
Static load Co (N)
1370
