HRB 7032ACM Bearing

For reference only. Please contact us for actual product photos and detailed specifications.

HRB Genuine Original

HRB 7032ACM Bearing
Model / Part No: 7032ACM Catalog ID: MB-F4C35451

Brand

HRB

Model / Part No.

7032ACM

Category

Bearing

Origin

Global

Availability

71 pcs Ready to Ship
US$ 255.00 / unit (Wholesale)
Secure Payments
PayPal
Bank T/T

Official proforma invoice provided for all settlements.

Cross-Brand Alternatives

ZWZ 7032ACM

ZWZ

7032ACM

US$ 46.30 View
NXZ 7032ACM

NXZ

7032ACM

US$ 65.10 View
TMB 7032ACM

TMB

7032ACM

US$ 119.00 View

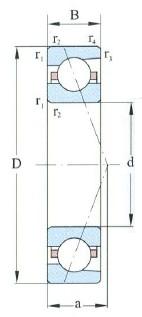

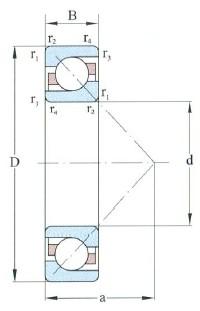

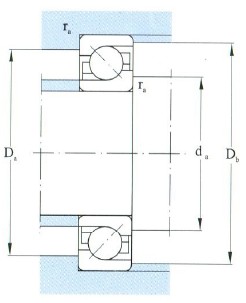

Technical Drawings (For reference only)

Technical Drawing 1
Technical Drawing 2
Technical Drawing 3
Technical Drawing 4
Technical Drawing 5

Technical Specifications (For reference only)

Cr
265.0
Cor
280.0
D
160
B
38
da min
172
Da max
228
Grease lubrication
3100
Oil lubrication
4100
r1,2 min
2.1
r3,4 min
1.1
ra max
2.0
rb max
1.0
Bearing code / designation
7032AC
Db max
234.0
Point of Action Position a (mm)
66.0
Back-to-back arrangement DB
7032AC/DB
Face-to-face arrangement DF
7032AC/DF
Tandem arrangement DT
7032AC/DT
Weight single row (Ref) (kg)
5.1
