Home Bearing BUT 329172 Bearing
BUT 329172 Tapered Roller Bearing

For reference only. Please contact us for actual product photos and detailed specifications.

BUT Genuine Original

BUT 329172 Bearing
Model / Part No: 329172 Catalog ID: MB-E1A3F523

Brand

BUT

Model / Part No.

329172

Category

Tapered Roller Bearing

Origin

Global

Availability

14 pcs Ready to Ship
US$ 1350.00 / unit (Wholesale)
Secure Payments
PayPal
Bank T/T

Official proforma invoice provided for all settlements.

Cross-Brand Alternatives

F&Z 329172

F&Z

329172

US$ 1145.00 View

Technical Drawings (For reference only)

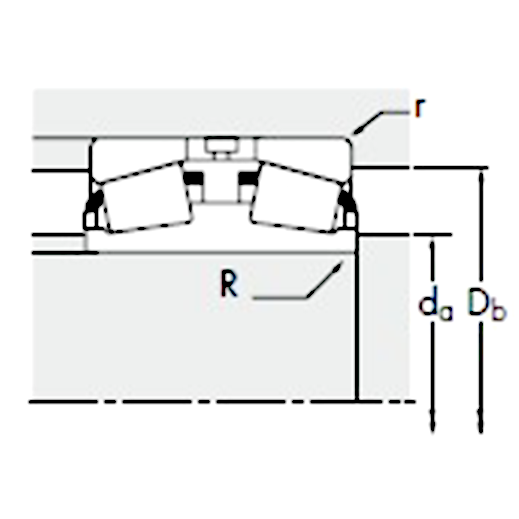

Technical Drawing 1

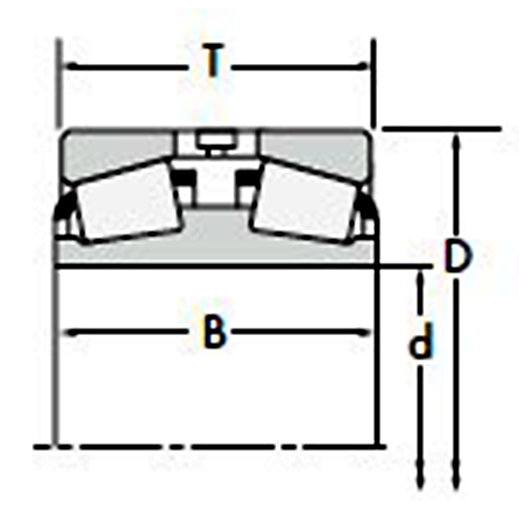

Technical Drawing 2

Technical Specifications (For reference only)

D
304.648
B
131.762
Weight (kg)
61.46
T
131.762
Inner Ring
EE329117D
Outer Ring
329172
G1
2100
G2
262
Gg
0.1651
Spacer (4)
Y1S-329172
Dynamic Load (1) C1
1880000
Factor (5) e
0.33
Factor (5) Y1
2.04
Factor (5) Y2
3.03
Dynamic Load (2) C90
280000
Dynamic Load (2) Axial Ca90
159000
Dynamic Load (2) C90(2)
488000
Factor (5) K
1.76
Shaft shoulder diameter da
327
Shoulder diameter Db
410
Max shaft shoulder chamfer radius R(3)
3.3
Max housing shoulder chamfer radius r(3)
3.3
