Home Bearing BUT 722186CD Bearing
BUT 722186CD Tapered Roller Bearing

For reference only. Please contact us for actual product photos and detailed specifications.

BUT Genuine Original

BUT 722186CD Bearing
Model / Part No: 722186CD Catalog ID: MB-3E54BD24

Brand

BUT

Model / Part No.

722186CD

Category

Tapered Roller Bearing

Origin

Global

Availability

10 pcs Ready to Ship
US$ 4270.00 / unit (Wholesale)
Secure Payments
PayPal
Bank T/T

Official proforma invoice provided for all settlements.

Cross-Brand Alternatives

F&Z 722186CD

F&Z

722186CD

US$ 3630.00 View

Technical Drawings (For reference only)

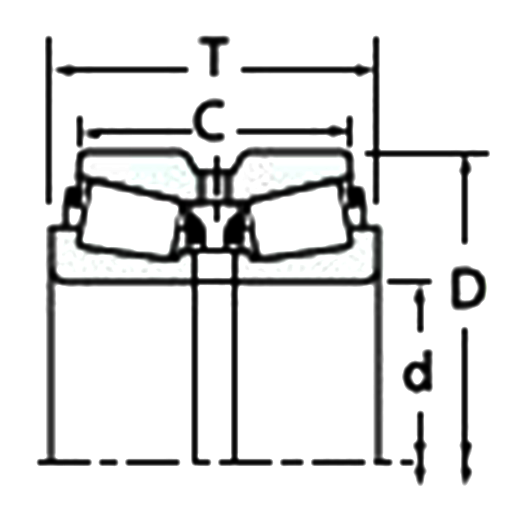

Technical Drawing 1

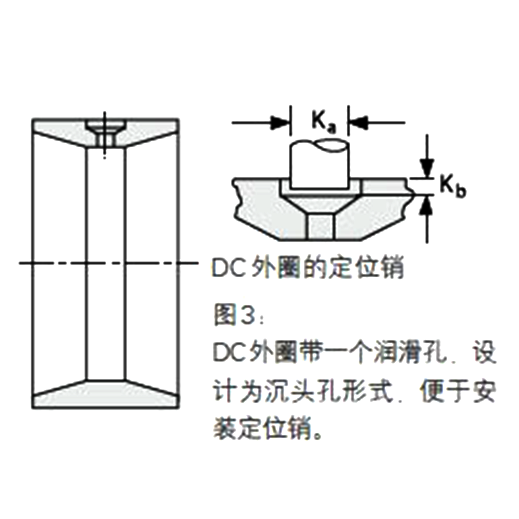

Technical Drawing 2

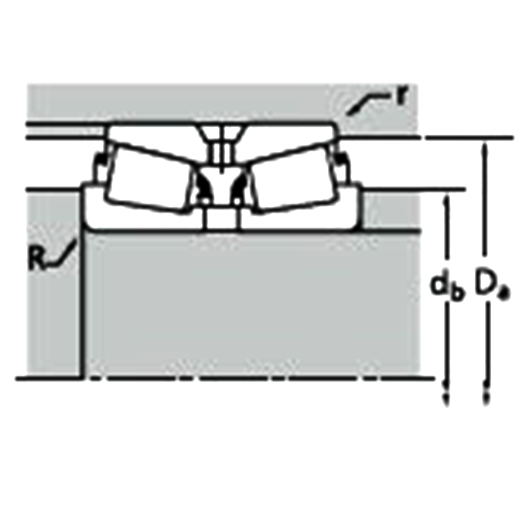

Technical Drawing 3

Technical Specifications (For reference only)

D
279.4
B
149.225
Weight (kg)
120.44
T
200.025
Inner Ring
EE722110
Outer Ring
722186CD
G1
1890
G2
143
Gg
0.1669
Spacer (4)
X2S-722110
Ka
28.4
Kb
11.7
Dynamic Load (1) C1
2400000
Factor (5) e
0.38
Factor (5) Y1
1.79
Factor (5) Y2
2.66
Dynamic Load (2) C90
357000
Dynamic Load (2) Axial Ca90
231000
Dynamic Load (2) C90(2)
622000
Factor (5) K
1.55
Max shaft shoulder chamfer radius R(3)
9.7
Shaft shoulder diameter Db
321
Max shoulder chamfer radius r(3)
1.5
Shoulder diameter Da
433
