Home Bearing KJB LMK25AUU Korean Anti-Rust Linear Bearing
KJB LMK25AUU Bearing

For reference only. Please contact us for actual product photos and detailed specifications.

KJB Genuine Original

KJB LMK25AUU Korean Anti-Rust Linear Bearing
Model / Part No: LMK25AUU Catalog ID: MB-DD1D6EE6

Brand

KJB

Model / Part No.

LMK25AUU

Category

Bearing

Origin

Global

Availability

2030 pcs Ready to Ship
US$ 8.90 / unit (Wholesale)
Secure Payments
PayPal
Bank T/T

Official proforma invoice provided for all settlements.

Cross-Brand Alternatives

MYT LMK25AUU

MYT

LMK25AUU

US$ 4.20 View

Technical Drawings (For reference only)

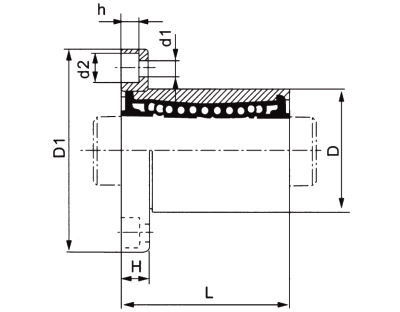

Technical Drawing 1

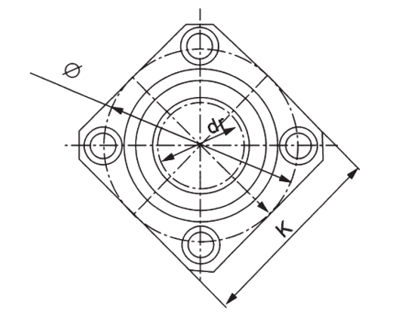

Technical Drawing 2

Technical Specifications (For reference only)

V
9
Row
6
Bore Diameter dr
25
Bore Tolerance
0 -0.010
Outside Diameter D
40
Outside Diameter Tolerance
0 -0.016
Length L
77
Length tolerance
±0.3
Radial runout (MAX.)
0.015
C(kgf)
100
Co(kgf)
160
(g)
319
YTP (Nickel Plated)
LMK25AUU-MX
MISUMI (Nickel Plated)
LHFSM-MX25
YHDA (Nickel Plated)
MX-LME13-d25
Connection hole d1
5.5
Flange D1
62
Flange H
8
Connection hole d2
9
Connection hole h
5.1
Flange perpendicularity
0.015
Flange Φ
51
Length L1
59
Flange K
50
