Home Bearing Silent 6011-ZZ Deep Groove Ball Bearing - 55x90x18mm Low Noise Double Shielded
Silent Bearing 6011-ZZ Bearing

For reference only. Please contact us for actual product photos and detailed specifications.

Silent Bearing Genuine Original

Silent 6011-ZZ Deep Groove Ball Bearing - 55x90x18mm Low Noise Double Shielded
Model / Part No: 6011-ZZ Catalog ID: MB-184DCD85

Brand

Silent Bearing

Model / Part No.

6011-ZZ

Category

Bearing

Origin

Global

Availability

9260 pcs Ready to Ship
US$ 1.95 / unit (Wholesale)
Secure Payments
PayPal
Bank T/T

Official proforma invoice provided for all settlements.

Cross-Brand Alternatives

TIMKEN 6011-ZZ

TIMKEN

6011-ZZ

US$ 5.60 View

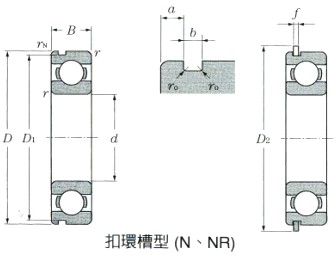

Technical Drawings (For reference only)

Technical Drawing 1
Technical Drawing 2
Technical Drawing 3
Technical Drawing 4
Technical Drawing 5
Technical Drawing 6
Technical Drawing 7
Technical Drawing 8

Technical Specifications (For reference only)

Bore Diameter d
55
Outside Diameter D
90
Chamfer rs min
1.1
Dynamic Rated Cr
28300
Basic static load rating Stat.Cor
21200
Open type
6011
Width B
18
Grease open Z/ZZ/LB/LLB
7700
Grease LLH
-
Grease LU/LLU
4500
Oil lubrication open Z/LB
9000
Shielded type ZZ
6011ZZ
Non-contact Seal Type LLB
6011LLB
Low Torque Type LLH
-
Contact Seal Type LLU
6011LLU
With snap ring groove
6011N
With snap ring
6011NR
Groove bottom diameter D1 max
86.79
Distance to width face a max
2.87
Width b (Minimum)
2.7
Groove bottom chamfer r0 max
0.6
Width D2 (Maximum)
96.5
Diameter fmax
1.46
Shaft shoulder diameter da min
61.5
Shaft shoulder diameter da max
64
Housing shoulder diameter Da max
83.5
Corner ras max
1
Dx (Approx.)
98
Cy max
5
Cz max
2.5
rNas max
0.5
Open type (Approx)
0.388
