Home Bearing BUT 94687 Precision Tapered Roller Bearing for Machinery
BUT 94687 Tapered Roller Bearing

For reference only. Please contact us for actual product photos and detailed specifications.

BUT Genuine Original

BUT 94687 Precision Tapered Roller Bearing for Machinery
Model / Part No: 94687 Catalog ID: MB-D2DAC9EB

Brand

BUT

Model / Part No.

94687

Category

Tapered Roller Bearing

Origin

Global

Availability

18 pcs Ready to Ship
US$ 1055.00 / unit (Wholesale)
Secure Payments
PayPal
Bank T/T

Official proforma invoice provided for all settlements.

Cross-Brand Alternatives

F&Z 94687

F&Z

94687

US$ 899.00 View

Technical Drawings (For reference only)

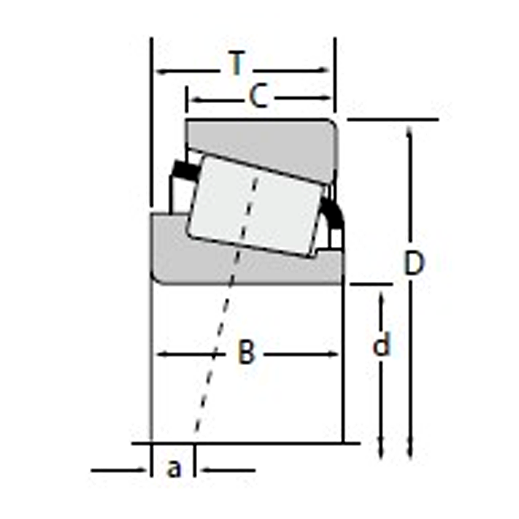

Technical Drawing 1

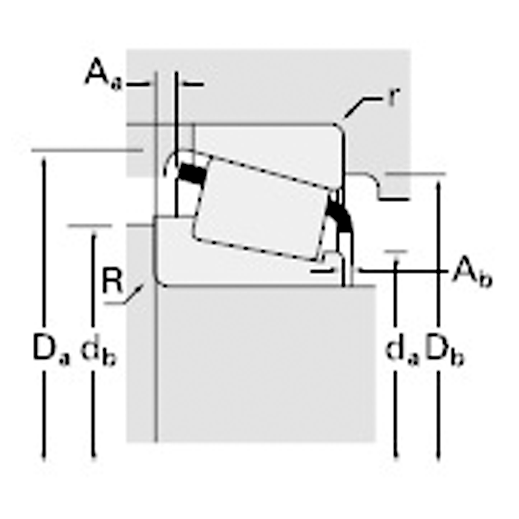

Technical Drawing 2

Technical Specifications (For reference only)

D
174.625
C
47.625
B
63.5
Weight (kg)
15.72
T
63.5
Static load C0
1070000
Inner Ring
94687
Outer Ring
94113
a(3)
-0.8
Aa
6.8
Ab
5.2
G1
692
G2
93.8
Gg
0.1287
Dynamic Load (1) C1
611000
Factor (5) e
0.47
Dynamic Load (2) C90
159000
Dynamic Load (2) Axial Ca90
127000
Factor (5) K
1.25
Shaft shoulder diameter Db
204
Shoulder diameter Da
272
Factor (5) Y
1.28
Max shaft shoulder chamfer radius R(4)
7
Shaft shoulder diameter da
193
Max shoulder chamfer radius r(4)
3.3
Shoulder diameter Db
259
