Home Bearing WERB CF30-2 / KR90 Stud Type Cam Follower Needle Roller Bearing - High Load Capacity
WERB CF30-2 Bearing

For reference only. Please contact us for actual product photos and detailed specifications.

WERB Genuine Original

WERB CF30-2 / KR90 Stud Type Cam Follower Needle Roller Bearing - High Load Capacity
Model / Part No: CF30-2 Catalog ID: MB-F9EE7BAC

Brand

WERB

Model / Part No.

CF30-2

Category

Bearing

Origin

Global

Availability

1020 pcs Ready to Ship
US$ 17.80 / unit (Wholesale)
Secure Payments
PayPal
Bank T/T

Official proforma invoice provided for all settlements.

Technical Drawings (For reference only)

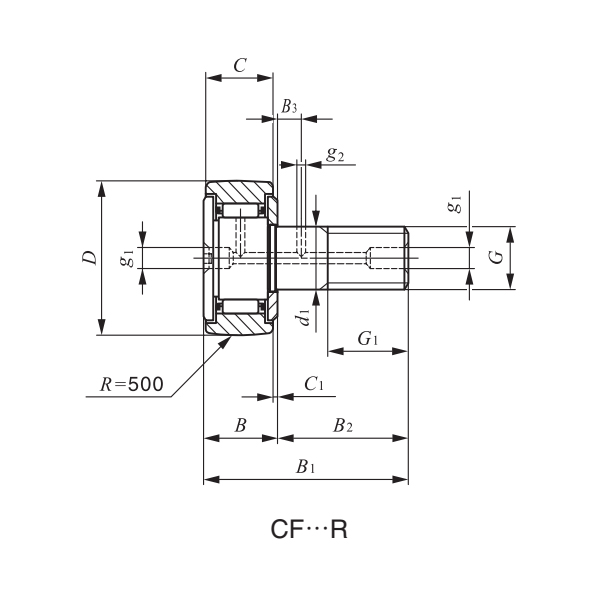

Technical Drawing 1

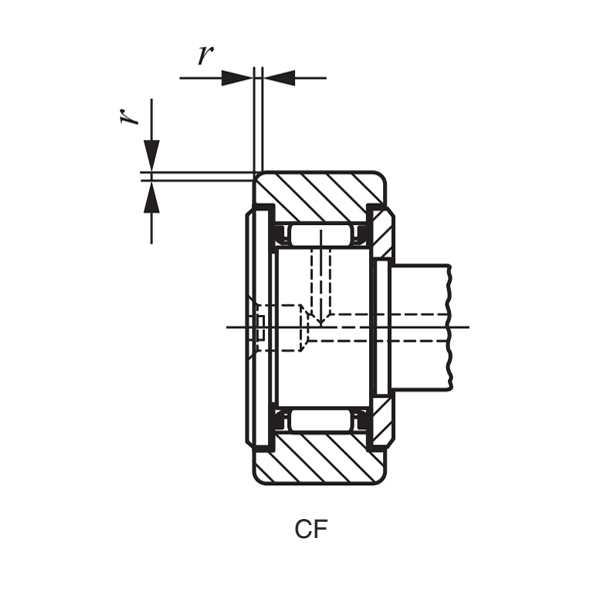

Technical Drawing 2

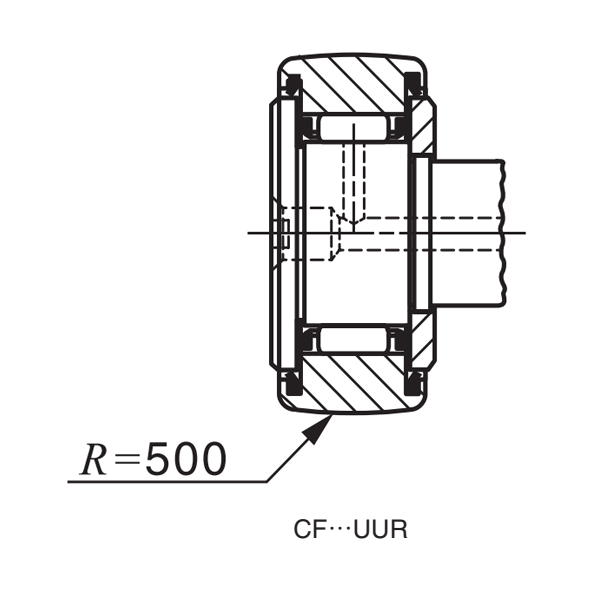

Technical Drawing 3

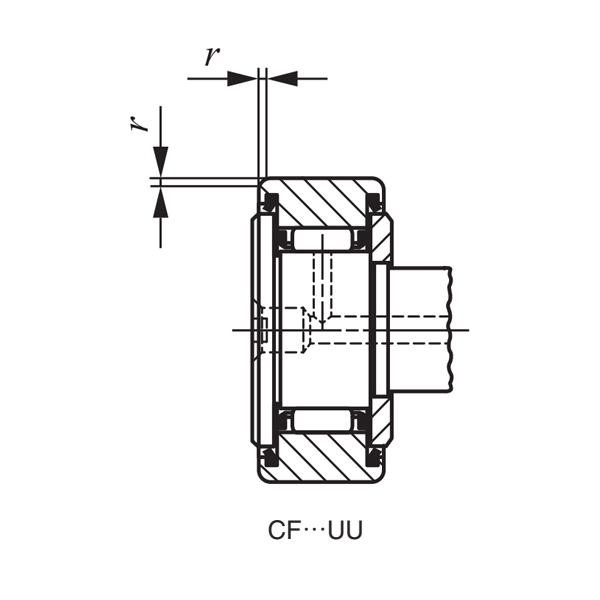

Technical Drawing 4

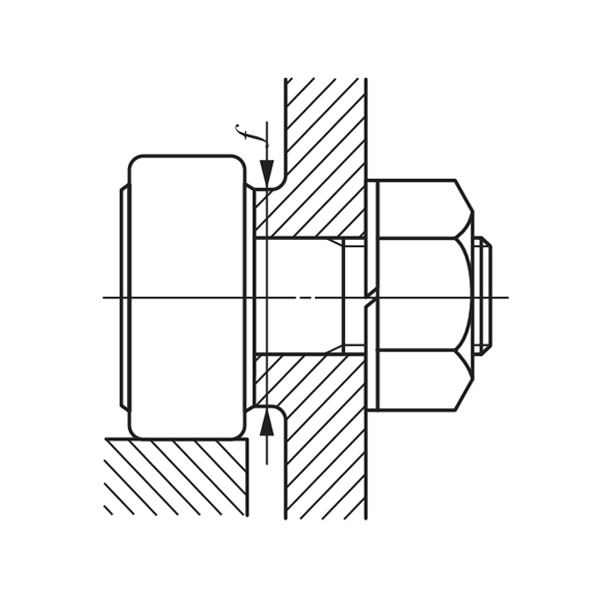

Technical Drawing 5

Technical Specifications (For reference only)

Bearing Type
Stud Type Cam Follower Needle Roller Bearing
Model Series
KR Series / CF Series
Outer Diameter (D)
90 mm
Overall Width (B)
32 mm
Roller Width (C)
32 mm
Stud Thread Size (G)
M30x1.5
Stud Length (B1)
50 mm
Shoulder Diameter (d1)
30 mm
Outer Ring Profile
Crowned
Sealing
Integrated Seals (often lip seals)
Lubrication
Pre-lubricated, re-lubrication possible via stud
Dynamic Load Rating (Cr)
80.0 kN
Static Load Rating (C0r)
110.0 kN
