Home Bearing BUT H2313E BUT Reinforced Series Bearing Mounting Adapter Sleeve
BUT H2313E Bearing

For reference only. Please contact us for actual product photos and detailed specifications.

BUT Genuine Original

BUT H2313E BUT Reinforced Series Bearing Mounting Adapter Sleeve
Model / Part No: H2313E Catalog ID: MB-822E8F3E

Brand

BUT

Model / Part No.

H2313E

Category

Bearing

Origin

Global

Availability

940 pcs Ready to Ship
US$ 19.30 / unit (Wholesale)
Secure Payments
PayPal
Bank T/T

Official proforma invoice provided for all settlements.

Technical Drawings (For reference only)

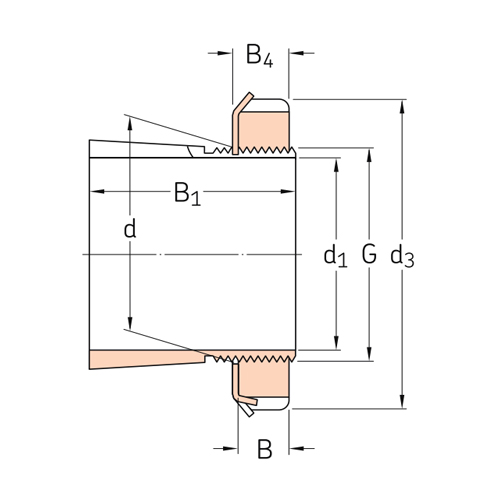

Technical Drawing 1

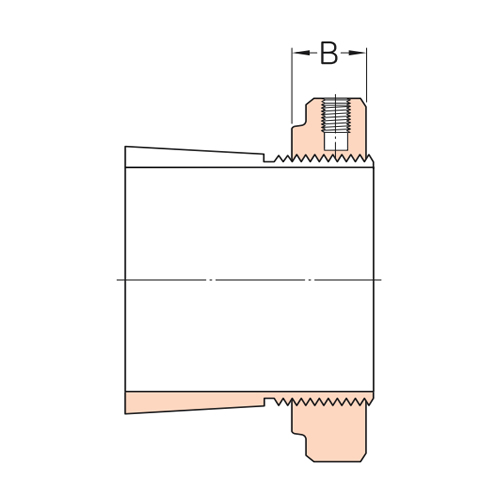

Technical Drawing 2

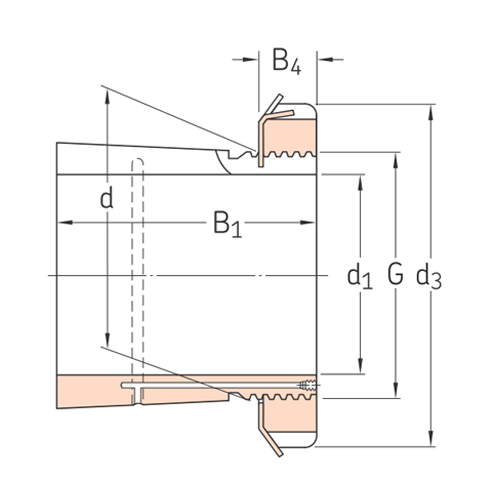

Technical Drawing 3

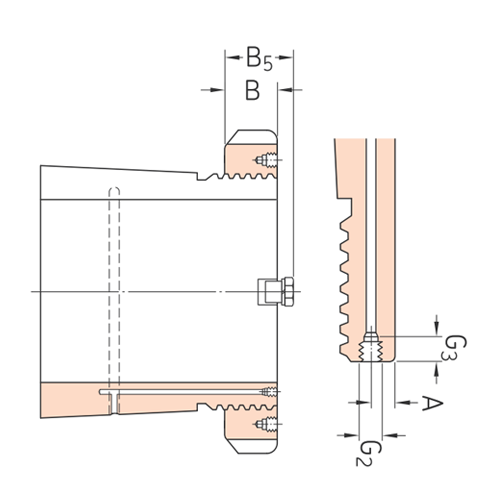

Technical Drawing 4

Technical Specifications (For reference only)

Product Type
Adapter Sleeve
Model
H2313E
Shaft Diameter (Nominal)
65 mm
Sleeve Inner Diameter (for bearing bore)
65 mm
Outer Diameter (approx.)
70 mm
Width (Sleeve)
50 mm
Width (Lock Nut Side)
57 mm
Lock Nut Thread
M65x2
Recommended Lock Nut
KM13
Recommended Lock Washer
MB13
Compatible Bearing Series
1213K, 1313K, 2213K, 2313K (with tapered bore)
Material
Carbon Steel
Series
Reinforced Series
Suffix 'E' Interpretation
Enhanced or specific design variant

Logistics & Global Settlement

Tri-Regional Warehousing

Orders fulfillable from our strategic hubs in Singapore, Shanghai, and Malaysia for optimized lead times.

100% Authenticity Promise

Every component is sourced through authorized channels with strict quality control protocols.

Global Settlement

We support international trade via Bank T/T and PayPal with secure transaction monitoring.

Official Payment Channels
PayPal

Fast & Secure

Bank T/T

Wire Transfer

Commercial invoices (PI) will be issued in USD. Letter of Credit (L/C) accepted for high-volume contract orders.

Trade Assurance

Shipping Origins

SG, CN, MY

Trade Terms

EXW, FOB, CIF, DDP

Certificates

CO, Form E, FTA Support

Technical Expert

Amy

"Need technical drawings (PDF/CAD) or a bulk volume quote? I'm available for immediate consultation."

TALK TO AN EXPERT
