When a bearing fails in a critical piece of machinery, you don’t always have time to redesign the mounting system. You need a direct fit. This is where the Rexnord ZAF Series (5000 and 6000) comes into play.

Based on the Rexnord catalog (pages 31-34), these units are engineered specifically for SAF Interchangeability. If you are familiar with the industry standard SAF (Split Pillow Block) housings, these bearings are designed to drop right into that existing footprint.

Here is a breakdown of what makes these series the go-to solution for heavy-duty industrial repairs.

1. The "Universal Fit" Philosophy

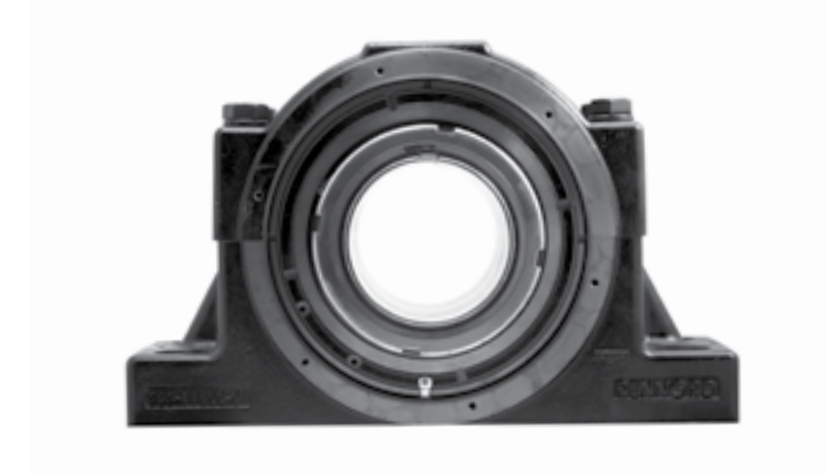

The ZAF5000 and ZAF6000 series are categorized as Pillow Blocks (also known as Plummer Blocks). Their primary feature, as highlighted in the catalog, is SAF Interchangeability.

• What does this mean? The mounting dimensions (bolt hole spacing, base to centerline height) are standardized to match the global SAF standard.

• Why is it important? It allows maintenance teams to replace worn-out competitor bearings with Rexnord units without drilling new holes in the foundation or modifying the machine frame. This saves hours of downtime.

2. Two Series, Two Strategies

While both series share the same housing standard, they differ fundamentally in how they grip the shaft. Understanding this difference is key to your selection.

A. The ZAF5000 Series: The Heavy-Duty Workhorse
This series utilizes the Double Set Collar mounting system.

• Engineering Insight: The double collar system provides maximum shaft holding power and stability. It is classified as a "Heavy Duty" mounting style.

• Visual Cues: If you look at the part numbers (e.g., ZAF5207), the "5" signifies this double-collar design. According to the catalog, these are ideal for applications requiring high stability but where the shaft tolerance might not be precision grade.

B. The ZAF6000 Series: The Precision Adapter
This series features the SHURLOK Adapter Mount.

• Engineering Insight: The tapered adapter sleeve allows for full bore contact. This isn't just a clamp; it's a precision fit.

• The Advantage: The catalog explicitly states that this system accommodates undersized shafting and ensures maximum running accuracy. The "Positive Locking System" mentioned in the catalog means these bearings are less prone to vibration loosening, a common killer in high-vibration environments.

3. Decoding the Dimensions

Let's look at the raw data from the catalog (Page 31-32). When you select a ZAF unit, you are dealing with two critical axes: the Shaft Diameter and the Housing Dimensions.

Here is a snapshot of the data for the 2-bolt pillow block configuration:

Table 1: ZAF5000 (Double Set Collar) Dimensions

表格

Table 2: ZAF6000 (Adapter Mount) Dimensions

表格

Note: Data is representative of Fixed (ZAF) units. Expansion (ZAFS) units have slightly different lengths.

Key Observation:
Notice the difference in Shaft Diameter for the same Size Code. A Size Code 6 ZAF5000 fits a 30mm shaft, while a Size Code 6 ZAF6000 fits a 40mm shaft. This is because the adapter sleeve takes up space inside the bore. You cannot directly substitute a 6000 series for a 5000 series without checking the shaft size and bore availability.

4. The "F" Suffix: Four-Bolt Stability

The catalog also details units with an "F" suffix (e.g., ZAF5207F).

• What is it? This denotes a Four-Bolt Pillow Block.

• Why use it? While the 2-bolt design is standard, the 4-bolt design offers superior resistance to torque and vibration. If your machine is subject to heavy shock loads or reversing torque, the catalog data shows that the "F" series models are the superior choice, offering a wider base and more secure mounting.

5. Environmental Defense

Don't forget the sealing options discussed in the previous article. The catalog notes that for the ZAF series, you can specify seals by replacing the "Z" prefix:

• Type Z: Standard metal clearance seal (high speed).

• Type M: Heavy contact seal (for washdowns and grit).

• Type G: Triple lip seal (for heavy vibration).

The ZAF5000 and ZAF6000 series represent the perfect marriage of standardization and heavy-duty engineering. Whether you are replacing an old SAF housing or designing a new heavy-load conveyor system, these units offer the robustness of cast iron housing combined with the precision of Rexnord's spherical roller technology.

By understanding the difference between the double-collar (5000) and adapter (6000) systems, you ensure that your replacement isn't just a "close fit," but a perfect mechanical match.
