Let’s face a hard truth about industrial maintenance: grease is not magic. It has a breaking point.

Push a standard bearing into a 600°F curing oven, and that grease turns to carbon sludge almost instantly. Submerge a greased unit in a harsh acid bath, and the lubricant washes away, leaving metal to grind against metal. In these extreme environments, the traditional "lubricate and pray" method doesn’t just fail; it becomes a liability.

This is exactly where the narrative changes. This is where Dodge bearings equipped with Solidlube technology stop being just an alternative and start being the only logical choice.

The Myth of the "Universal" Lubricant

For decades, engineers have tried to force standard oil and grease into applications they were never designed for. We’ve seen high-temperature polymers melt, synthetic greases oxidize, and manual lubrication schedules fail because a technician couldn’t access a fitting inside a scorching heat treat furnace.

The problem isn’t the bearing housing; it’s the reliance on an external fluid to do the work.

Dodge Solidlube bearings flip the script. They don’t use lubricant; they are the lubricant.





Inside the Carbon-Graphite Core

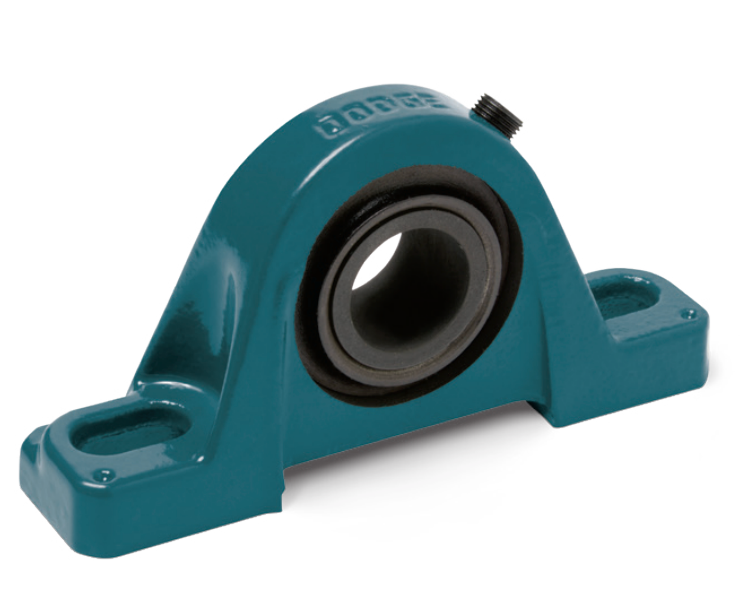

At the heart of every Dodge bearing in the Solidlube series is a high-performance carbon-graphite insert. This isn’t just a coating; it’s the structural soul of the bearing.

• Self-Lubricating Physics: As the shaft rotates, microscopic layers of the carbon-graphite material transfer to the shaft surface, creating a low-friction film. This happens continuously, automatically, and without any human intervention.

• No Melting Point: Unlike grease which degrades, carbon-graphite remains stable at temperatures that would incinerate organic lubricants.

• Chemical Inertness: Graphite is notoriously resistant to chemical attack. Whether it’s acidic fumes in a chemical plant or caustic washdowns in food processing, the lubrication mechanism remains intact because the "lubricant" is essentially a solid rock that doesn't react.

Real-World Scenarios: Where Dodge Bearings Save the Day

Theory is great, but let’s talk about where these Dodge bearings are actually earning their keep on the factory floor.

1. The Heat Treat Nightmare

The Problem: A metalworking facility needs bearings for a conveyor running through a 750°F (400°C) annealing furnace. Standard grease bearings last about 3 weeks before seizing. The downtime to replace them costs thousands per hour.

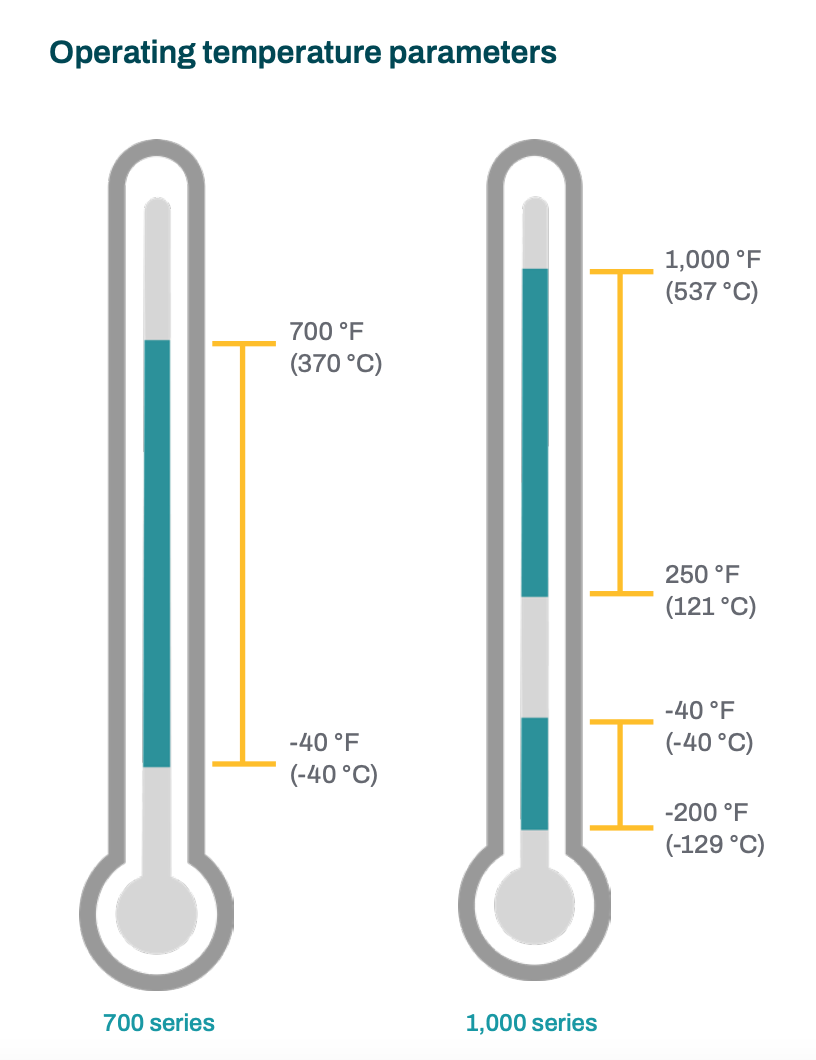

The Dodge Solution: The Solidlube 1000 Series is rated for continuous operation up to 1000°F (537°C). Because there is no grease to coke up or evaporate, the bearing runs consistently for months, even years. The carbon-graphite actually performs better as temperatures rise in certain dry environments, maintaining that critical low-friction layer.

2. The Chemical Washdown

The Problem: A pharmaceutical or chemical processing line requires frequent, aggressive washdowns with harsh solvents or acids. Every time the line is cleaned, the grease is stripped from the bearings, leading to rapid corrosion and wear.
The Dodge Solution: Solidlube inserts are chemically inert to a vast range of acids, alkalis, and solvents (as detailed in Dodge’s extensive chemical compatibility charts). You can blast these Dodge bearings with high-pressure steam or corrosive fluids, and the lubrication source remains untouched. Plus, the cast iron housing comes with a corrosion-resistant coating, adding another layer of defense.

3. The "Impossible" Maintenance Zone

The Problem: Bearings located in dampers, high-up in air handling units, or deep inside sealed machinery are notoriously difficult to reach. Missing a single grease interval can lead to catastrophic failure.
The Dodge Solution: "Maintenance-free" isn’t just a marketing buzzword here; it’s a physical reality. Since Dodge Solidlube bearings require zero additional lubrication, you eliminate the risk of human error. Install it once, and forget it. This is crucial for industries where shutting down to grease a bearing is more expensive than the bearing itself.

Beyond Temperature: The Hidden Benefits

While heat resistance gets all the glory, the engineering behind Dodge bearings offers other subtle but critical advantages.

• Self-Alignment: Misalignment is a silent killer of bearings. The Solidlube design features a unique ball-and-socket arrangement between the housing and the insert. This allows for up to 4 degrees of misalignment (±2 degrees), accommodating shaft deflection or installation errors without inducing edge loading. An anti-rotation pin keeps the insert stable while allowing this movement.

• Durability by Design: The inner unit isn’t just bare graphite. It’s reinforced with a robust cast iron structure that protects the brittle carbon-graphite from impact and shock loads, ensuring the bearing doesn’t just slide well, but lasts long.

• Consistency Matters: Not all self-lubricating bearings are created equal. Dodge bearings are manufactured in an ISO 9001:2015 certified facility in Rogersville, TN. This ensures that every batch of carbon-graphite has the exact same density and porosity, meaning performance is predictable and repeatable. No surprises.

Making the Switch: Is It Right for You?

If your application involves:

• Temperatures exceeding 250°F (where grease starts to struggle).

• Exposure to corrosive chemicals or frequent washdowns.

• Environments where contamination from grease is unacceptable (like food or textile processing).

• Locations that are inaccessible for routine maintenance.

...then sticking with standard greased bearings is essentially choosing to fail eventually.

Transitioning to Dodge Solidlube bearings often requires no major redesign. They come in standard mounted sleeve configurations (700 and 1000 series) that fit directly into existing setups. The only thing you change is the frequency of your maintenance logs—from "weekly" to "never."

The Bottom Line

In the harsh reality of industrial engineering, reliability is the only currency that matters. Grease has its place, but when the environment turns hostile, you need a partner that doesn’t flinch.

Dodge bearings with Solidlube technology offer that resilience. They turn the most punishing conditions—scorching heat, drowning chemicals, and inaccessible spots—into routine operations.

Don’t wait for the next seized shaft to rethink your lubrication strategy. Explore the capabilities of Dodge Solidlube today and see what true maintenance-free operation looks like. Your future self (and your maintenance team) will thank you.
