As a core component in industrial transmission systems, bearings directly determine the operational stability, service life and maintenance cost of equipment based on their installation accuracy, disassembly efficiency and daily maintenance quality. As a leading brand in the global bearing industry, NSK leverages a century of technical accumulation to develop a professional maintenance tool system covering the entire process of handling, pulling, installation, hydraulic locking and fastening. With standardized, lightweight and high-safety designs, it addresses maintenance pain points for heavy-duty, precision, blind-hole bearings and other scenarios, making it a reliable partner for bearing operation and maintenance in industrial sites.




The core value of NSK bearing maintenance tools lies in avoiding manual operation damage, improving work efficiency and ensuring installation accuracy. Traditional bearing maintenance mostly relies on rough knocking and simple pullers, which can easily cause indentations on bearing raceways, cracks in inner rings and damage to shaft journals. Moreover, the handling of large bearings is time-consuming, labor-intensive and risky. NSK’s series of targeted tools are developed around “non-destructive operation and maintenance” in terms of structural design, material selection and operation logic, providing professional care for bearings throughout their life cycle from installation to disassembly.

In heavy-duty bearing handling scenarios, the BHTN series handling and lifting tools are highly efficient solutions. Suitable for large bearings with outer diameters ranging from 300–500 mm and 500–700 mm, these tools wrap the bearing outer ring with a steel belt and use slings and symmetrical handles to achieve smooth lifting with a crane, preventing deformation caused by uneven stress on bearings. The anti-rotation rod design fixes the bearing inner ring, enabling non-destructive handling even for self-aligning ball bearings that are prone to offset. Capable of withstanding high temperatures up to 160°C, the tools are ideal for handling bearings after hot mounting. They save nearly 50% of working time compared with traditional methods, and completely eliminate problems such as bearing collisions and rolling element damage caused by manual handling, turning heavy-duty bearing handling from a “high-risk operation” into a “safe process”.

For the non-destructive installation of small and medium-sized precision bearings, the FTN333 installation tool demonstrates extreme professionalism. Designed specifically for bearings with inner diameters of 10–50 mm, its key advantage is accurate transmission of assembly force. Through a scientific combination of impact rings and impact sleeves, it ensures that force is applied entirely to the bearing inner or outer ring, never to the rolling elements, thus avoiding raceway damage at the source. The impact ring is made of highly shock-resistant material, and the double-sided nylon hammer head combines impact force with protection. It is not only suitable for cold mounting of bearings but also for assembling bushings, seals, pulleys and other accessories, realizing multi-purpose use. Equipped with a detailed selection scheme, the tool matches deep groove ball bearings of series 60, 62, 63, 64 and various roller bearings, replacing “empirical operation” with standardized and error-free installation.

The difficult disassembly of blind-hole and conventional bearings is efficiently solved by the BPN62 ball bearing puller. This portable tool weighs only 3.2 kg and is equipped with 6 sets of hinged puller arms and 2 support spindles, suitable for deep groove ball bearings with shaft diameters of 10–100 mm. The elastic lock ring fixes the position of the puller arms to ensure even transmission of assembly force. The arms made of high-quality steel are sturdy and durable, allowing bearings to be pulled out of blind-hole housings without removing the shaft, greatly simplifying the maintenance process. The toolbox contains a selection chart, enabling operators to quickly match puller arms and spindles. Even non-professional technicians can get started quickly, solving common industry problems such as jamming, uneven stress and failed disassembly of traditional pullers.

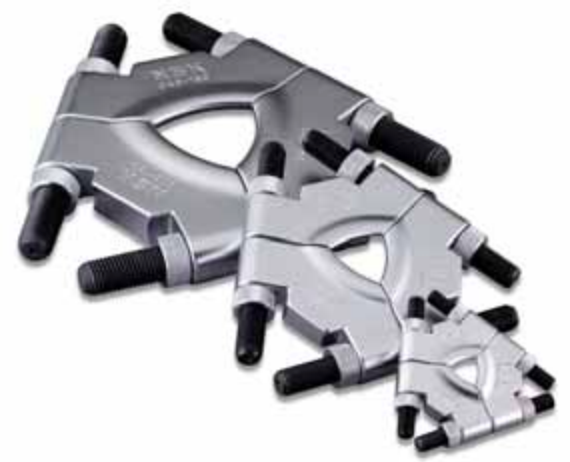

NSK bearing maintenance tools are not single products but systematic operation and maintenance solutions. From CK3 series pullers, pushers and three-face pressure plates to HMV hydraulic nuts, HSS hydraulic pumps and HN series hook wrenches, they cover all scenarios from small precision bearings to large heavy-duty bearings, and from cold mounting to hydraulic mounting. Adopting patented axial advancement technology and Armoloy anti-corrosion coating, hydraulic nuts accurately control the installation clearance of tapered-bore bearings, reducing operational difficulty by eliminating frequent reliance on dial indicators. Hydraulic pumps provide stable power for hydraulic systems, with single-stage and double-stage designs adapting to different pressure requirements. All tools are stored in portable boxes for easy on-site carrying and inventory management.

In the era of intelligent and efficient industrial equipment development, bearing maintenance has shifted from the “extensive operation” mode to accurate, safe and efficient professional maintenance. NSK bearing maintenance tools simplify complex bearing maintenance processes with meticulous design, protecting core components from damage while reducing labor costs and safety risks. They have become standard equipment for operation and maintenance in metallurgy, wind power, machine tools, rail transit and other industries. Choosing NSK maintenance tools is not only choosing a set of industrial accessories but also a professional support system that extends bearing life and ensures stable equipment operation, turning bearing operation and maintenance from a “burden” into an “advantage”.
