Select FYH Bearings According to Shaft Diameter and Load
Published: Jul 14, 2026
Engineering Team

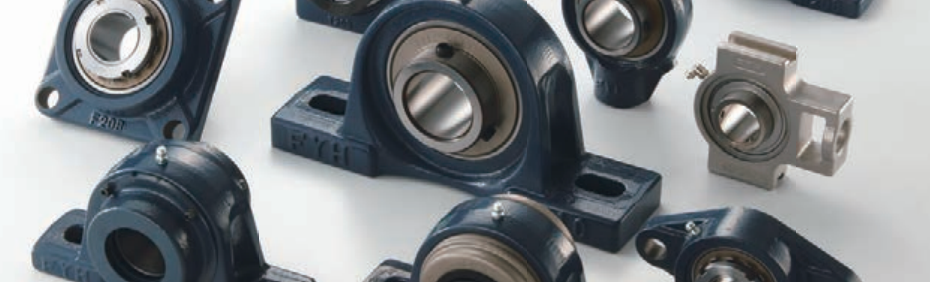

FYH bearings are divided into four load-bearing series covering full working conditions from ultra-light to heavy-duty. The shaft diameter marking rule is unified: No.01 = 12mm bore, No.02 = 15mm bore, and all numbers above No.04 multiplied by 5 equal the corresponding inner diameter. Inch-sized variants are also available for retrofitting imported machinery.
| FYH Bearing Series | Load Grade | Typical Applicable Machinery |
|---|---|---|
| 0 Series SU Mini Bearings | Ultra-light Load | Mini packaging machines, small conveyors |
| 2 Series UC Standard Bearings | Medium-Light General Load | Most standard industrial assembly lines and common motors |
| X Series Bearings | Medium Load | Continuous stable general transmission equipment |
| 3 Series Bearings | Heavy Load | Crushers, large lifting machines, big-diameter rollers |
General conveyors and standard transmission equipment adopt 2 Series UC bearings. Mining and heavy rollers shall use 3 Series. Mini lightweight machinery chooses 0 Series SU bearings. During selection, calculate the continuous radial and axial loads of equipment; sufficient load safety margin shall be reserved for machinery with vibration and shock.
